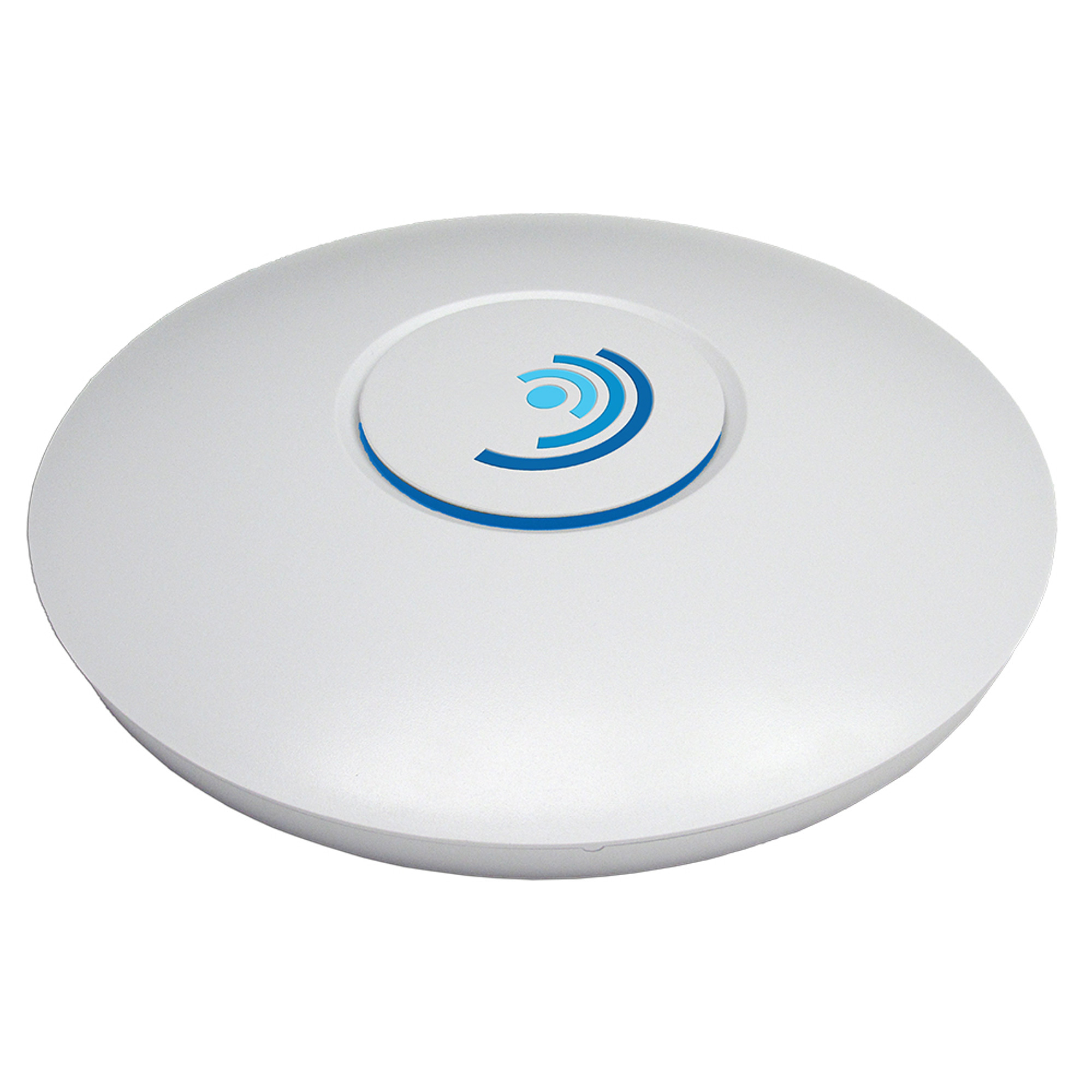

MAP7 Dual Band Marine Access Point
Aigean has developed specialized wireless access points called Marine Access Points(MAP) for providing high-performance local wireless networks onboard. Ā MAP's allow for redistribution of the vessel's Internet connection for tablets, phones, and computers to connect form anywhere on or int he vicinity of the vessell. Ā Install a single MAP on smaller vessels, and multiples on larger vessels (usually over 40' LOA). Ā
Quickly and easily connect to your existing network to add or expand wireless coverage. When paired with an Aigean Networks Wi-Fi Client or Router, you can manage any connected access points directly through their interfaces.
Technical Specifications:
- Processor Specs Atheros MIPS 74Kc, 550MHz
- Memory Information 128MB SDRAM, 16MB Flash
- Networking Interface 2 x 10/100/1000 BASE-TX (Cat 5, RJ-45) Gigabit Ethernet
- Powerful 2.4 GHz and 5 GHz (802.11abgn)
Physical/Electrical/Environmental
- RF Connector None - Internal Antennas
- Enclosure Size 11.9" x 9.3" x 1.5" (300mm x 266mm x 36.7mm)
- Weight 0.64 lbs, 0.95 lbs with Mounting Kits (0.29 kg, 0.43 kg)
- Enclosure Characteristics Plastic saucer-style enclosure
- Power Method Passive Power over Ethernet (48V), 802.3af Supported
- Operating Temperature 14xF to 158xF (-10xC to 70xC)
- Operating Humidity 5 to 80% Noncondensing
- Shock and Vibration ETSI300-019-1.4
- Environment Resistance IP60 (NEMA 1)
- Mounting bracket
- 110-220V AC PoE injector included
- 2 Year Limited Warranty
Manufacturer : Aigean Networks
Manufacturer Part No : AN-MAP7
UPC : 860006788735
