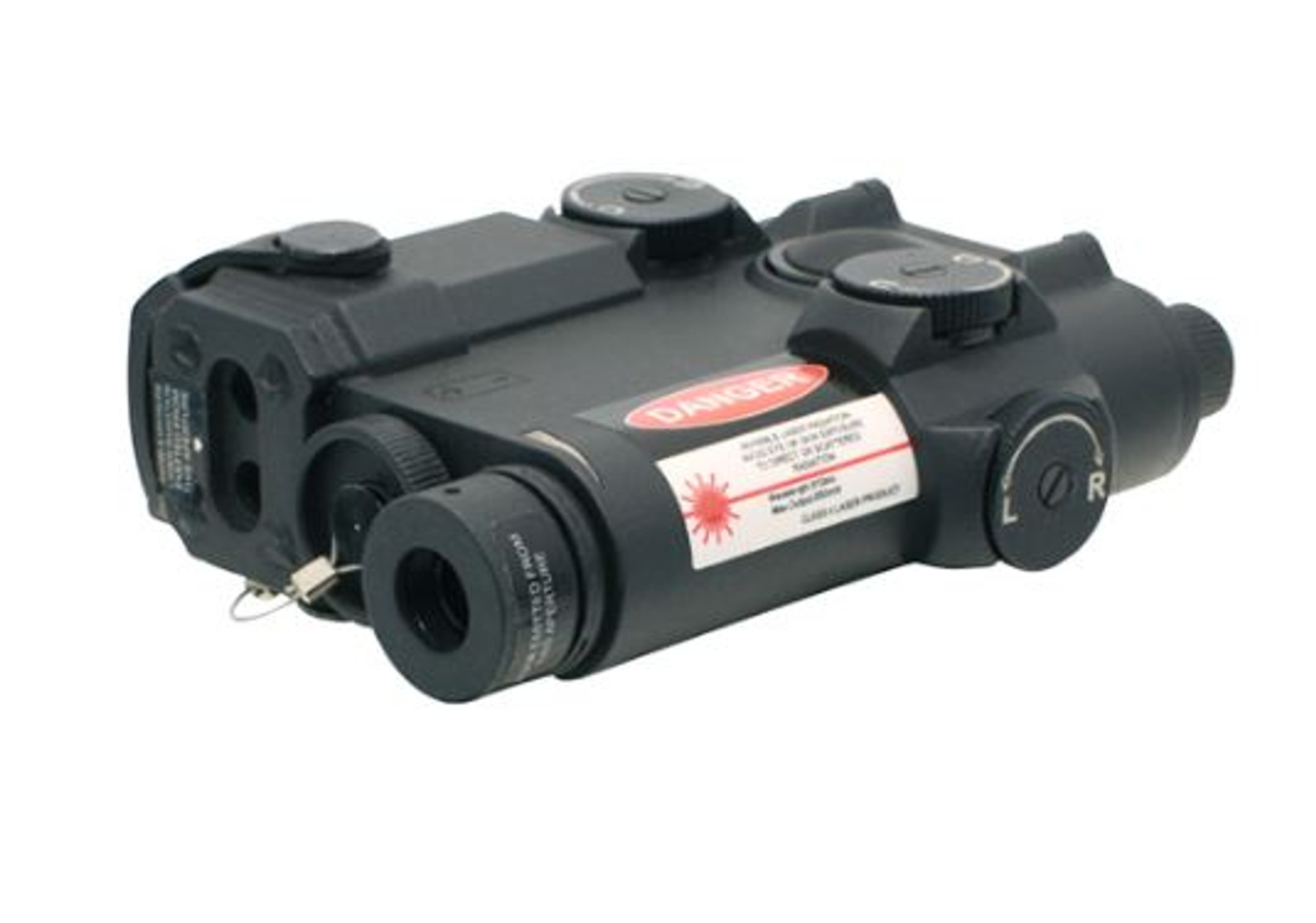

The LAM 3G is a multi-laser aiming system equipped with collimated visible and IR lasers designed to reach out to 2,000m. Built-in IR illuminator and IR aiming laser provide covert tactical precision when paired with night vision devices. Features an adjustable IR illuminator for better illumination at longer ranges, dual activation switches and high/low power modes ensures appropriate laser intensity during training exercises. With a quick-release M1913 mount, the LAM 3G is among the lightest aimers in its class and is the right choice for professional operators demanding unrivaled performance and reliability. The unit is constructed of high-strength aluminum and can withstand rigors of tactical life on virtually any weapon platform.
FEATURES:
| Visible and IR laser modes |
| Mountable on various assault rifles |
| Extremely rugged design |
| Wired pressure switch |
| MIL-STD-810G |
SPECIFICATION:
|
Visible Laser Aimer |
|
|
Eye safety |
IIIb |
|
Distance, low/high (m) |
150 / 500 |
|
Beam divergence, FWHM (mrad) |
0.5 |
|
Spot size @ 100m (mm) |
50 |
|
Wavelength (nm) |
532 ±10 |
|
Laser colour |
Green |
|
Output power, low/high (mW) |
<4/≥8 |
|
Infrared Laser Aimer |
|
|
Eye safety |
IIIb |
|
Distance, low / high (m) |
400 / 2,000 |
|
Beam divergence, FWHM (mrad) |
0.5 |
|
Spot size @ 100m (mm) |
50 |
|
Wavelength (nm) |
830 ±15 |
|
Output power, low/high (mW) |
<2/≥20 |
|
Infrared Laser Illuminator |
|
|
Eye safety |
IIIb |
|
Distance, low / high (m) |
200 / 2,000 |
|
Beam divergence, FWHM (mrad) |
1 – 105 |
|
Wavelength (nm) |
830 ±15 |
|
Output power, low/high (mW) |
<2/≥25 |
|
Ballistics |
|
|
Windage adjustment step (mrad) |
0.25 |
|
Windage adjustment range (mrad) |
60 |
|
Elevation adjustment step (mrad) |
0.25 |
|
Elevation adjustment range (mrad) |
60 |
|
Retention after 1,000 shots (mrad) |
1 |
|
Mechanics, Electronics & Environmental |
|
|
Dimensions (mm) |
105x86x48 |
|
Weight without batteries (g) |
315 |
|
Weight with batteries (g) |
330 |
|
Shock resistance (G) |
300 |
|
Quick release |
Yes |
|
Battery type |
CR 123 |
|
Battery life, high / low (hours) |
8 / 16 |
|
Operating temperature range (°C) |
-20 to +50 |
|
Storage temperature range (°C) |
-40 to +60 |
|
Waterproofing |
MIL-STD 810G |
