Features
- Designed, manufactured and built in the U.S.A.
- Assembled from CNC machined aluminum components with high performance delrin nozzle
- Universal cylinder design is compatible with numerous gearbox versions
- Optimized flow profile, firing point and flow path promotes superior shot consistency and accuracy
- User selectable Semi/Full Auto, Semi Auto Only and Variable Burst modes
- Auto Switch mode allows for proper selector configuration for specific models
- Easy to use Mini Fire Control Unit (FCU) with LCD display and five position joystick saves space
- Instantaneous trigger response. Faster than an AEG with a Li-po
Similar to its sister product, the F1, it replaces the original gearbox components with a programmable pneumatic system allowing for higher performance and greater reliability over a gear driven system. Although economically priced, JACK™ still retains the same performance and quality you have come to expect from PolarStar products.
Just like all other PolarStar HPA conversions, JACK™ also allows for easy velocity adjustment. Using a standard M4 as an example, velocity can be adjusted from below 280fps and up to approximately 500fps with a .20g BB. This can be done simply by adjusting input pressure and poppet dwell to fine tune your rifles velocity in increments of just a few FPS at a time. Maximum velocity potential of the system will vary depending upon the barrels length and tightness of the bore. Longer and tighter barrels will yield a higher velocity while shorter or wider barrels will be yield a lower velocity.
As with all of PolarStar's electro-pneumatic conversion kits, you can quickly change and adjust key functions of JACK™ via the on-board FCU (Fire Control Unit) which is no bigger than an AEG's MOSFET and can easily fit inside of a rifles battery compartment along with a small Li-po battery. Using the FCU's five position joystick and LCD display you will be able to easily and precisely adjust such functions as the systems cyclic rate, fire modes and poppet dwell on the fly.
Although efficiency was not a critical requirement during development, JACK™ does boast some highly respectable figures in this category. This is made possible by is compact and intelligently laid out design which minimizes dead volume resulting in better air flow, faster response and less air used per shot. As a result JACK™ is considerably more air efficient than a bone stock Fusion Engine™ when operating in the same velocity range.
Material: Aluminum / Delrin
Compatibility: M4 series AEGs
Included Nozzle Type: Version 2 M4 Series
Rate of Fire: 1 - 30+ RPS (Adjustable)
Muzzle Velocity: 500 FPS w/ .20g 6mm BB @ 120 PSI
Fire Modes: Semi / 2 - 9 Round Burst, Semi / Full Auto, Semi Only
Power Source: HPA (High Pressure Air via Remote Air Rig)
FCU Battery: 7-10VDC w/ JST Connector
PSI Operating Range: 40 PSI - 130 PSI (Do NOT exceed 130 PSI, otherwise you may damage the internals)

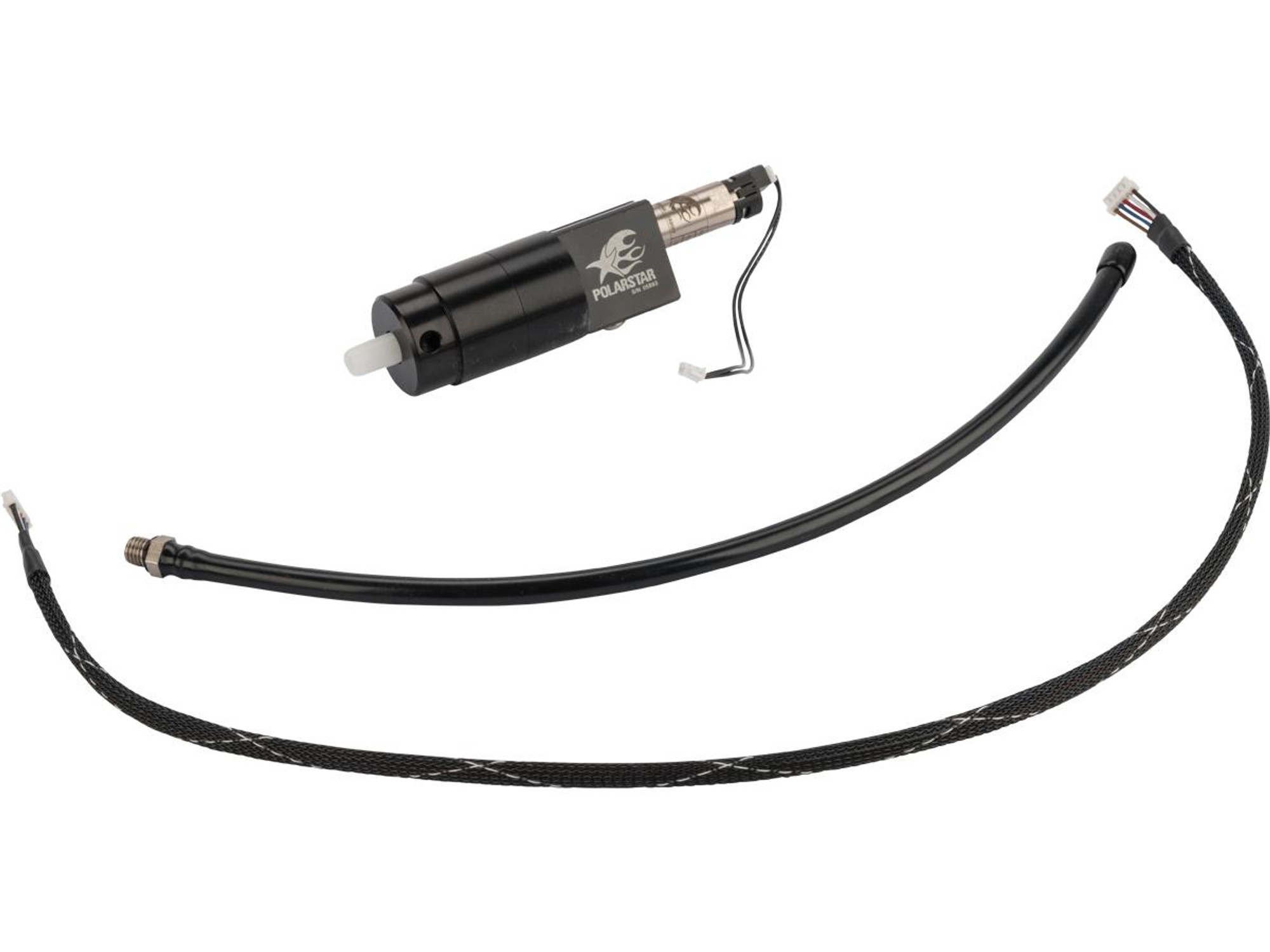

Package Includes: Pre-Assembled JACK Conversion Kit
Battery: 7.4v-9.6v NiMH or Lipo (Not included).
Manufacturer: PolarStar Airsoft
